Vision Dragon VD200 is designed to precisely align workpieces. It utilizes a visual inspection system that includes the following components:
- VD200 Visual Inspection System
- Camera
- Lens
- Ring Light Source
- Light Source Controller

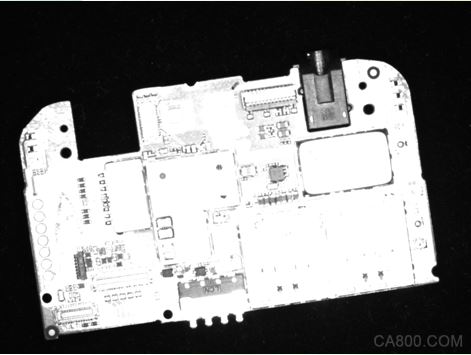

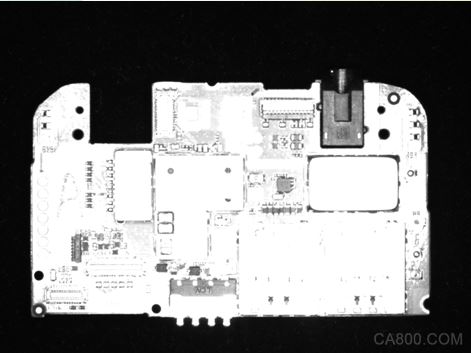

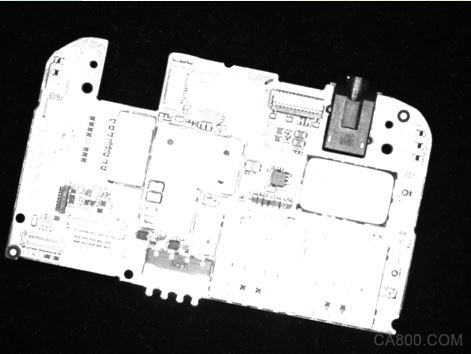

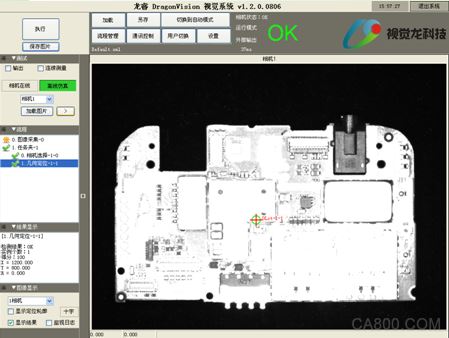

The image effect demonstrates how the system captures and processes the workpiece, ensuring accurate alignment. Below are some examples of the visual output:

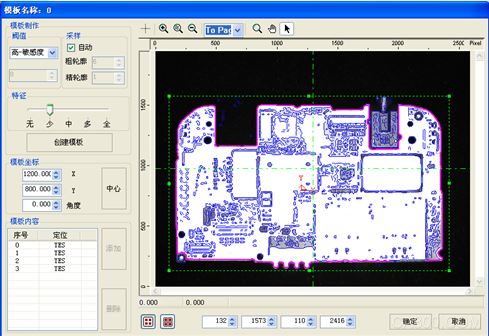

For processing effects, here are additional results:
Another application involves using a positioning fixture with the VD200 system. The bill of materials includes:
- VD200 Visual Inspection System
- Camera
- Lens
- Ring Light Source
- Light Source Controller

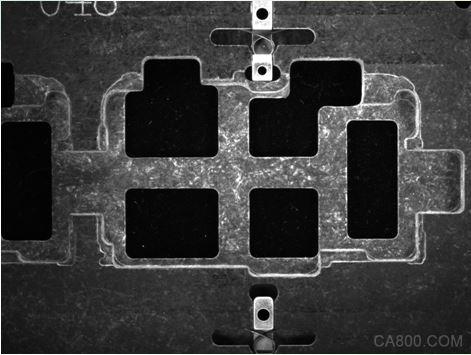

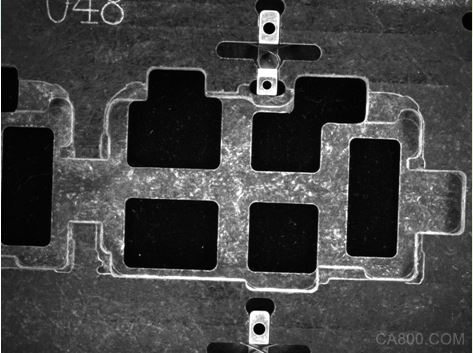

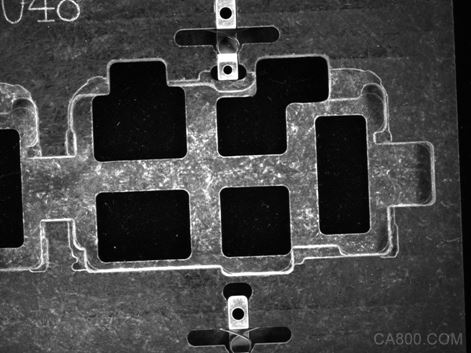

Here are the visual results:
There are multiple solutions for locating and capturing the workpiece:

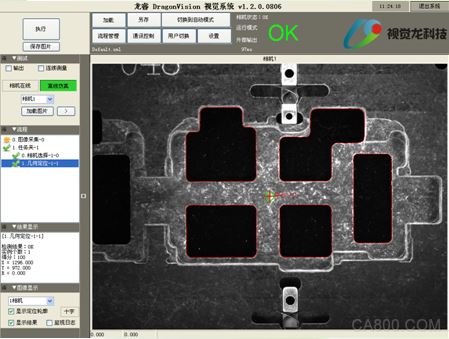

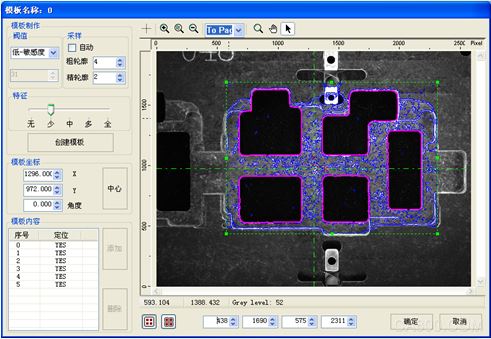

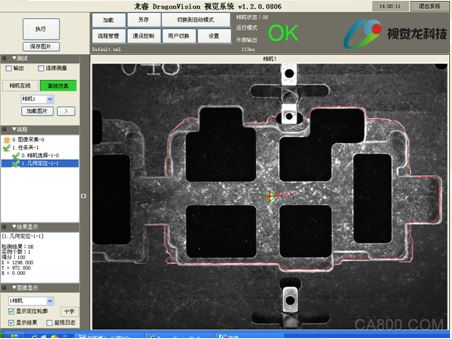

**Solution 1:** Using five inner frames for positioning, which makes the outline clear and easy to capture. Here are the processing results:

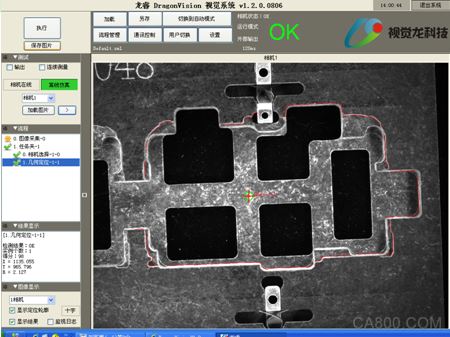

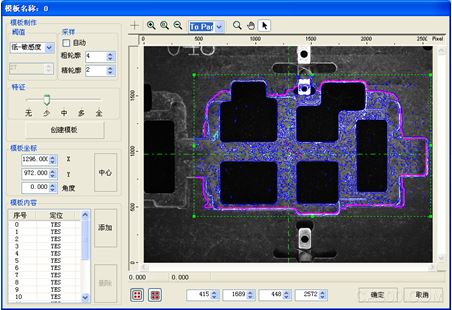

**Solution 2:** Locating using the outer contour and directly extracting the desired shape. Results include:

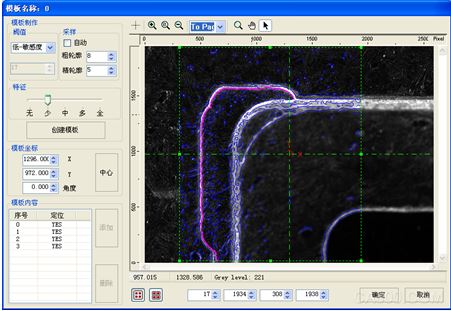

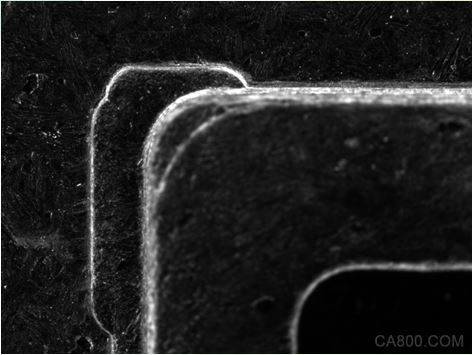

**Solution 3:** To improve detection accuracy and lighting quality, the field of view is reduced and divided into two corners of the shooting fixtures, making it easier to extract edge contours. This approach uses the following components:
- VD200 Visual Inspection System
- 500W CMOS Camera
- Telecentric Lens
- Bar Light Source (x3)
- Light Source Controller

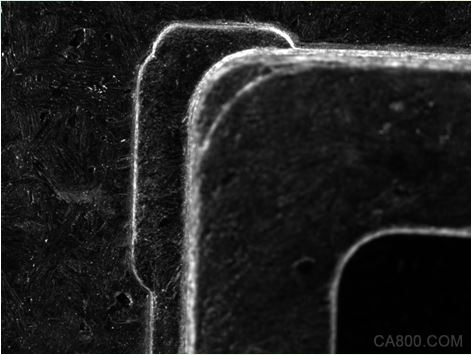

The image and processing results are as follows:

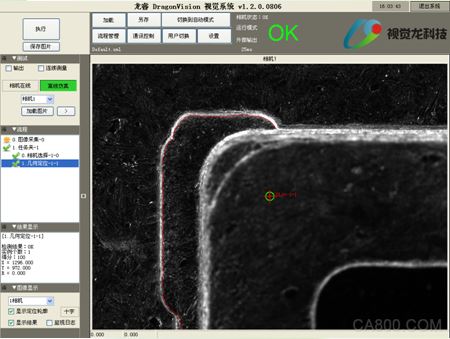

Processing effects include:
This system offers flexible and precise solutions for various industrial applications, ensuring high-quality visual inspection and accurate workpiece alignment.
