“The waves from the Yangtze River push forward and the front waves die on the beach....â€
Everyone knows that since the AMD downturn began, the market for mid-to-high-end U has been occupied by Intel and has lost its rivals. In the past decade, the increasing popularity of U with single-digit performance has made DIY players miserable. Everyone has turned to foreign garbage or even U that has been eliminated from the server platform. Fortunately, this situation was finally changed in March this year with the release of ZEN Ryzen7 series products. Its outstanding performance and the simultaneous launch of the new AM4 platform are, of course, even more surprising. It is more than half of the 8C16T's product line price. Consolidating it into the 2,000-level, it has triggered a wave of crazy upgrades of the three major platform trends.
Friends around us took the opportunity to start, and it also inspired me to start the first pre-sale Ryzen 7 1700+X370 PRO+ thief ship DDR4 light bar Although a lot of torment, the new platform is accompanied by compatibility issues. Can be updated with major manufacturers platform system, can be regarded as the problem has been solved, and successful DIY own 8C16T host.
At that time, the upgrade replaced the E3 V3 kit that had been used for several years. The compatibility of the new Ryzen7 platform gave me a cool feeling. So want to throw away the idle E3 platform directly. The idea of ​​keeping this mistress was abandoned. With competitors, it means that the spring of DIY players is bound to not be far behind. With the improvement of product lines, the competition between the two parties will surely result in more cost-effective products. Inevitably lead to price war
Sure enough, not long after, although the official online channel did not actually reduce the price of the action, but in the Aunt Zhang saw a variety of combinations of preferential prices. At the same time, news of the release of the Ryzen5 product line series was announced in April. So I did not hesitate to take the idle E3 platform directly. Of course, this time I learned how to be smart. I didn't start first..."
At that time, they also tangled 1500X, 1600, and 1600X. But it didn't take long before Zhang Aunt saw the 1C6T 6C12T Ryzen 5 1600. http://Amoy Amoy only needed 1349 and he didn't hesitate to go. Keep her mistress and give it to family members. At the same time, it began to pay attention to the coupon Jingdong Channel began to receive various coupon combinations, and finally got together three big items. Finally selected Ryzen 5 1600 +ASUS B350-PLUS + Thieves 3000
Ruilong AMD Ryzen 5 1600X processor 6-core AM4 interface 3.6GHz boxed 1999 yuan Jingdong direct link
Ruilong AMD Ryzen 5 1600 processor 6-core AM4 interface 3.2GHz boxed 1749 yuan Haitao only 1349 Jingdong direct link
ASUS PRIME B350-PLUS motherboard (AMD B350/socket AM4) 849 members special 849 Jingdong direct link
USCORSAIR Avenger LED Strip Light DDR4 3000 16GB (8Gx2 Strips) Desktop Memory Red 1049 Yuan Full 100-5, Overlay 1000-30 IT Voucher Jingdong Direct Link
â–¼ Black and red, it seems to take.

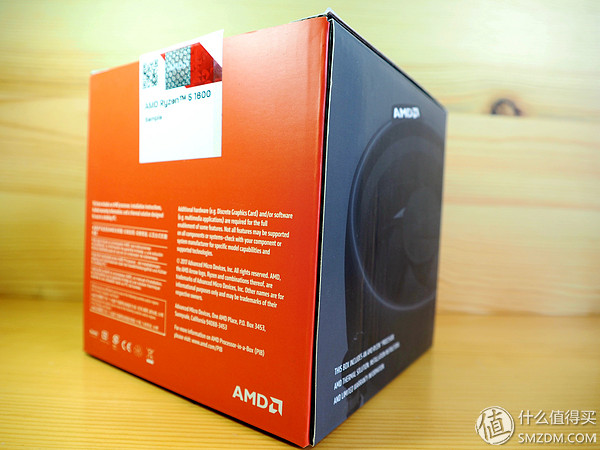

â–¼ Ryzen5 1600 packaging exactly the same as 1700, only to see U knows it is Ryzen5 1600
â–¼ To tell the truth, Ryzen's packaging designer is good, much better than I's face value.
â–¼ because it is Haitao, so the package is clean, there is no sticker of the national era
â–¼ contains one Ryzen5 1600+ original Ghost Radiator
â–¼ Compared to previous AMD tin boxes, now like to use plastic sleeves, saving costs
â–¼ AMD Ryzen5 1600 Real Body
â–¼The stitches of AM4 are shorter than those of the previous FX series. The shorter it may be, the less likely it is to bend.
â–¼ The days of waiting are always on the pins
â–¼ Ryzen5 original ghost radiator inside, can be considered conscience
â–¼ Compared to Ryzen7's heat sink, this heat sink does not have RGB lighting effect
â–¼ The bottom specifications are the same, AM4 interface
â–¼ Thieves ship's kit, the quality of the pirate ship can still be
â–¼ red light bar, the top of the cooling a pulled open
â–¼ ASUS ASUS home B350-PLUS, universal packaging style does not change
Like to buy Asus because it supports individual players to send insurance, but also extended warranty service. There are not many motherboards that support personal insurance
â–¼ The following are the same as the various technical instructions
â–¼ Static film + paper box
â–¼ A B350-PLUS, a manual, a disc, an I/O pad, and 2 SATA 6GB data lines
â–¼ B350-PLUS front, black and red paint design
â–¼ Back of B350-PLUS
â–¼Front 4*USB 2.0+2*USB3+ audio interface, the pin position is unchanged, and 4 SATA3 6GB/S ports are on the right
▼ Realtek® ALC 887 8-Channel High-Definition Audio Codec Japanese audio capacitors, layered design, sound shielding, and red LED lighting effects.
â–¼B350 chipset
â–¼PCIE 3.0x16, PCIE3.0x8, 2 PCI slots, 2 PCIE2.0 slots. Support CFX,
Support ASUS SafeSlot Core
â–¼ There is also an M.2 slot with an M key that supports the 2242/2260/2280/22110 type storage device (SATA & PCIE 3.0 x 2 mode)
At the same time there are CPU radiator RGB lamp pins.
â–¼right there are 2 SATA3 6GB/S interfaces
â–¼AMD DDR4 memory card slot *4
â–¼AM4 CPU base
ASUS DIGI+ Digital Power - 6-Phase Digital Power Design, Overvoltage Protection
â–¼1 x PS/2 Keyboard Interface, 1 x DVI-D Interface, 1 x D-Sub Interface, 1 x HDMI Interface
1 x LAN (RJ45) connector, 4 x USB 3.0 connector (blue), 2 x USB 2.0 connector
3 x audio jack, 2 x USB 3.1 Gen 2 (cyan)
â–¼Insert the memory and R5 1600 first, because the original radiator is going to be used, so the buckle of AM4 radiator is disassembled.
â–¼Three-piece jacket is installed like this
â–¼ A set of Ryzen5 1600 + B350 plus + Sapphire RX 580 Ultra Platinum
A set of Ryzen7 1700 + X 370 Pro + Sapphire RX 480 Ultra Platinum
â–¼box can be a wave
â–¼ Once successfully lit, the B350 PLUS+1600+ Thieves 3000+rx 580 has no compatibility problems.
How to update the BIOS of the ASUS motherboard
ASUS motherboard boot press F2 first, enter the motherboard BIOS interface, first set the boot disk and memory frequency parameters
â–¼ enter advanced options, first set the Chinese interface, BIOS is the factory date, so we have to update
â–¼ Find ASUS official from the notebook, select the B350-plus support service, you can see the BIOS has been updated 5-6 times.
Download the latest BIOS, unzip it, and put the file in the USB flash drive.
â–¼ Enter the BIOS again, setup tool, BIOS upgrade program
â–¼ Choose to Upgrade via USB Tool
â–¼Select the recognized U disk, then we can see the inserted BIOS file, click and confirm to read the file update
â–¼You can see that an update is in progress. No other operation can be performed during the update. Wait for it to complete automatically.
â–¼ After the completion of the automatic restart, we go into the BIOS can see that the version has been successfully updated
â–¼ Turn on one-key overclocking, DOCP. White special
â–¼ Adjust the memory frequency parameter to 2666, because the BIOS can only support dual-pass 2666 frequency. Press F10 directly to save the reboot.
â–¼ successfully adjusted after successful adjustment
â–¼AMD finally updated the Southbridge driver. This time, the solid state finally came out.
â–¼CPU-Z frequency parameter, if you use the original radiator, you can only overclock to 3.9G, because you set the overclocking voltage, so did not get 4.0
â–¼ memory parameters
Do not know why, the new CPU-Z score has changed, and the 7700K is no longer a comparison, so I had to choose 5960X
It can be seen that the 6C12T 1600 and 8C16T 5960X have a slight gap.
1600 overclocked to 3.9G completely overtakes the 5960X
▼ AIDA64 data, room temperature Guangdong 30 °C, standby 43 °C
â–¼AIDA64 CPUID
â–¼ memory test, silent frequency, 3.8G, 3.9G test data, here is not very clear, 1600 default Turbo frequency to 3.7, it seems a little different from what I saw before?
â–¼CH R15 score. Frequency 1126 3.8G score 1254
â–¼Chess Benchmark Test
▼1600 boot temperature is only 43 °C, graphics card full load CPU about 58 °C. But the temperature rises to 71°C in 10 minutes after 6C12T is full
After all, the original radiator, which also understand why the 3.9G run 5 minutes full load will be a black screen, because the original radiator and conscience no way to suppress the 3.9G full load 90 °C overheat protection. So overclocking to 3.8G requires a better heatsink.
â–¼ here to answer The next time someone asked me, RX 580's Chill technology. The core of this technology is actually under conditions of poor heat dissipation, or playing games with too many stories, too many hang-ups, and long waiting times. When you turn on Chill technology, the game will automatically lower the frame while quickly reducing the graphics temperature and reducing power consumption. The mouse operation is detected, and it will automatically frame back the technology. Also called "speed cooling technology", I will give you a demonstration below.
First of all, in the global settings of AMD Radeon, the bottom of the global Wattman. Open the global switch of Chill Technology and save the settings
We chose one of the games that Chill supports and watched the pioneer.
First press F11 in the game to turn on/off Chill technology
We can see the watch pioneer under the 2K quality, playing a stable number of frames at 65FPS, the temperature around 68 °C
Guarding people, with the mouse and keyboard not moving, you can see that the number of frames dropped to 40 FPS and the temperature dropped from 68°C to 62°C.
Operate the mouse and keyboard again, and the number of frames quickly returns to normal level. This is the Chill technology.
As for the “Insertion Frame Technologyâ€, it is actually to complement the frame of the 24P movie to 60P, making the picture smooth. This is a bit complicated and professional. We will rarely be able to use it at one and a half. I don't know too much about this operation. Everyone studies Baidu.
Platform Ryze5 1600+B350 plus+ RX 580 Ultra Platinum + Thieves Ship 3000 Light Bar
â–¼ machine platform standby power consumption: 53.6W
â–¼The whole platform CPU 100% full load power 132W
â–¼Overall platform CPU overclocking 3.8G 100% full load power consumption 187W
â–¼Full platform CPU full load, graphics card roasted chicken full load power consumption 311W
Above power consumption please add volatility +-20W
The Ryzen5 1600 was only used for a few days, but it was from my personal use. It is indeed much smoother than the E3 package. TDP 65W's power consumption is also relatively when the mistress occasionally double game, usually to the right family members to see video, office, web browsing. Of course, this computer actually does not play bad games. Just I already have a better Ryzen7 1700. Personally I think the positioning of Ryzen5 should be to further level the 6C12T product line into a thousand dollars. Because it is not equipped with nuclear display. So it should still be a CPU that tends to mid-end players. Haitao's price of 1349, if you were to pick up the last few seconds of the ****K, I think that some manufacturers are quite embarrassing. It feels that Ruilong's product line is starting to accelerate, and DIY players expect the price of the product to match the corresponding performance. Not the sky-high prices. To be honest, I'm looking forward to the back of Ryzen3. After all, many of my friends are looking for me to be an office computer.
The B350-plus feels that the design of this board has reserved a lot of space, after all, is the new AM4 motherboard. The room for improvement still needs to be left. The outsourced chipset still makes the memory frequency slightly slim. Although the new BIOS has been improving, I think it should be accelerated. After all, most DIY players are dual-channel.
Finally, remind everyone that 618 is coming. We must pay more attention to discount channels. We may have electronic product special offers at any time. I will also continue to spare the rest of the hardware.
