OFweek smart home network news in the process of home intelligence, in fact, switches and sockets are essential basic products, in a set of smart home systems, it is impossible to reduce the smart switch this one basic product. The intelligent switch refers to the unit that uses the combination and programming of the control board and the electronic components to realize the intelligent switch control of the circuit. At present, it has been widely used in many fields such as intelligent home renovation, intelligent office renovation, industrial intelligent transformation, and intelligent agriculture and forestry fishery and animal husbandry. I previously introduced the smart socket solution based on the WiFi module. This article will introduce the smart switch solution based on the WiFi module.
WiFi module intelligent switch solution
Application Profile:
The intelligent switch solution is based on the SKY105 WiFi module WU105, which enables wireless data transmission and control functions. SKYLAB provides: 1) hardware reference design; 2) cloud platform services; 3) iOS, Android APP design services; 4) embedded software services; 5) WiFi module WU105. The design process includes: wireless data transmission circuit, lighting control circuit. The use of signal transmission and reception, and signal processing after receiving, to achieve the control of the lighting system, to achieve the purpose of intelligent control.
Low power serial port WiFi module WU105
Wireless WiFi module intelligent switch solution design
First: Download the WiFi Smart Switch App, use a smart phone or tablet to install, we can easily control;
Second: App's user interface is simple and versatile. For example, timing, delay, automatic alarm, etc.
Third: embedded serial port WiFi module WU105, can make WiFi smart switch more energy-efficient. We don't have to worry about too much household electricity;
Fourth: Can be customized according to the different needs of manufacturers, so that more intelligent switch.
WU105 wifi module introduction:

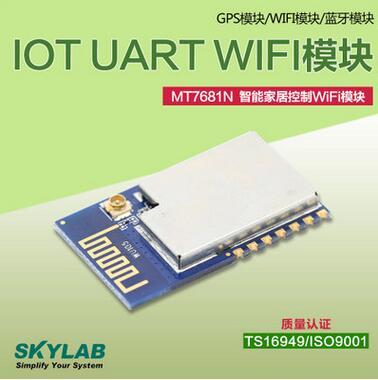

â–² WU105 is a low-cost, high-integration serial port WiFi module based on MT7681N. It supports IEEE802.11b/g/n 1T1R. The maximum wireless transmission rate is 150Mbps. The module provides UART and multiple GPIO interfaces. GPIO and PWM can be used. Intelligent control, UART and SPI interfaces for device communication.
â–² The module integrates PA, LNA, and RF switches. The module has a PCB antenna or an external antenna to simplify the design of the peripheral RF circuit. The module has an integrated power management unit and operates at 3.3 volts.
â–² The 32Bit RISC MCU is integrated in the module. When the software function requirement is relatively simple, the MT7681N internal MCU can even be used to replace the external MCU. The module supports TCP Server/TCP Client/UDP communication and supports Station and AP working modes.
â–² The user can easily use the WU105 to realize the wireless network function of the serial device, save the development time, make the product enter the market faster, and enhance the competitiveness.
WU105 WiFi module features:
â–²Support IEEE 802.11 b/g/n protocol, 1T1R, maximum wireless transmission rate is 150Mbps;
â–² Support UART and 4 GPIO interfaces, internal MCU support certain control functions;
â–² Support WEP, WPA/WPA2 security encryption;
â–² RF RF on/off, sleep mode power saving management function, ultra-low power consumption, working current <210mA, standby current <1mA;
â–² support external antenna or board antenna;
â–² support Smart Connection intelligent networking;
â–² support Station and AP mode;
â–²Support TCP Server/TCP Client/UDP communication; support DHCP DNS HTTP advanced application layer protocol;
â–² without any user-driven, the user's microcontroller only needs to be used as an ordinary serial port;
â–² The specific serial AT command set can greatly simplify the user's software design for WIFI connection and control;
â–² Pass CE/FCC certification and comply with ROHS standards;
â–² ultra-small size, size is only 28.5x17mm, chip package.
